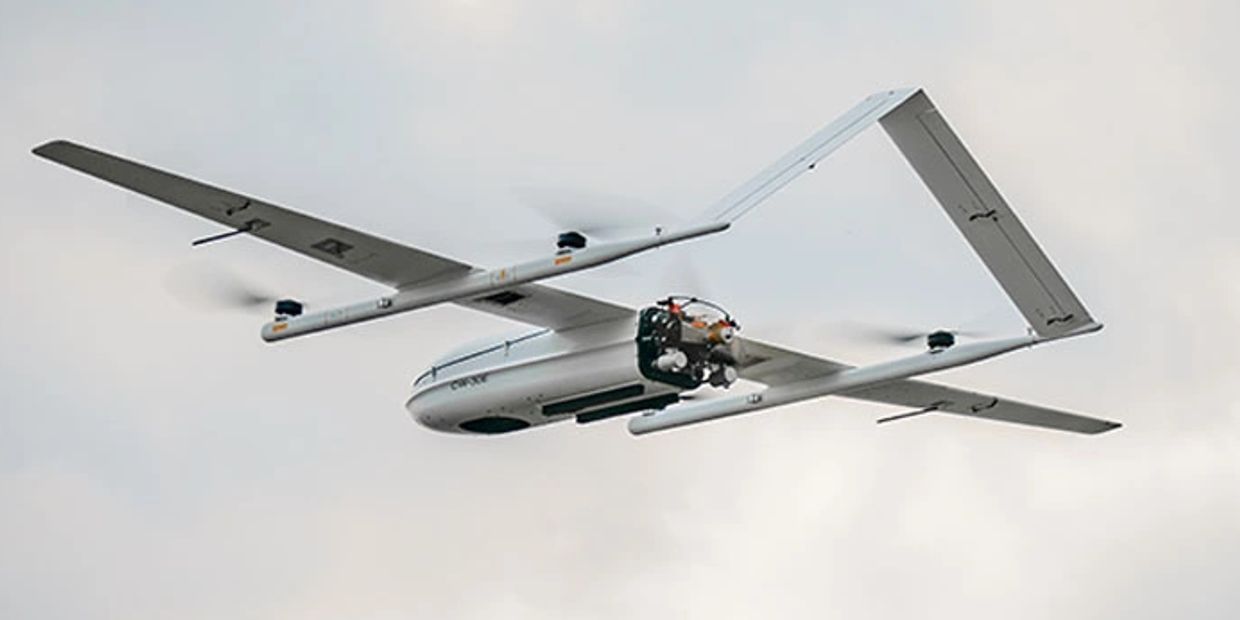

D-30E Overview

• Dimensions:

• Fuselage Length: 2.4 meters​

• Wingspan: 4.4 meters​

• Weight and Payload Capacity:

• Maximum Takeoff Weight (MTOW): 38 kg​

• Maximum Payload: 8 kg​

• Flight Performance:

• Endurance: Up to 8 hours with a 6 kg payload​

• Cruising Speed: 90 km/h​

• Wind Resistance: 13.9 to 17.1 m/s​

• Service Ceiling: 6,000 meters

• Maximum Takeoff Altitude: 3,500 meters


• High Payload Capacity: The D-30E can carry up to 8 kg, allowing for the integration of various high-performance payloads, customizable to specific mission requirements. ​

• Extended Endurance: Offers up to 8 hours of flight time with a 6 kg payload, meeting the demands of long-duration and large-area operations, resulting in time and cost savings. ​

• Long-Range Data Link: Features a control link range of up to 200 km, significantly enhancing operational distance and providing advantages in long-range surveillance tasks. ​

• Ease of Use: Equipped with features such as vertical takeoff and landing, automatic pre-flight checks, task execution, and emergency return, facilitating its operation even in complex environments. ​

• Advanced Safety Technology: Incorporates obstacle detection and avoidance systems, as well as ADS-B modules for detecting other aircraft, ensuring safe operations in various environments. ​

• Robust Environmental Adaptability: Designed to operate in harsh conditions, including high altitudes, high humidity, low temperatures, and light rain, thanks to its self-heating airspeed tube and battery.

 The D-30E supports a wide range of payloads, allowing users to tailor the system to specific mission requirements. Compatible equipment includes LiDAR systems, industrial aerial cameras, oblique camera systems, gimbal payloads, and synthetic aperture radar (SAR).
